Expert Medical Precision Grinding Services

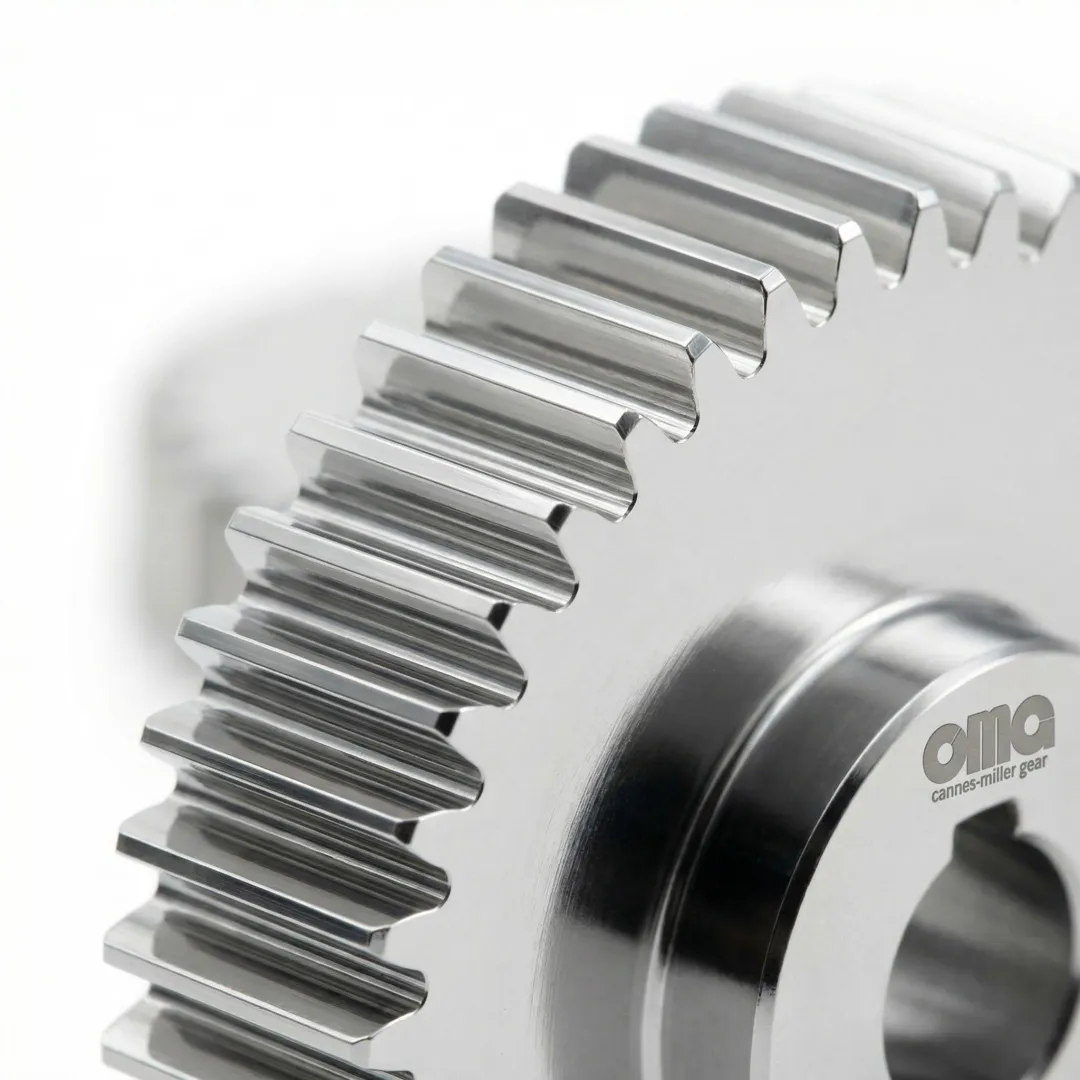

Precision grinding is an advanced manufacturing process that uses abrasive wheels to achieve extremely tight tolerances and superior surface finishes on metal components. In medical applications, precision grinding removes minimal material while creating mirror-like surfaces and exact dimensions critical for surgical instruments, implants, and diagnostic equipment where even micron-level variations can impact performance and patient safety.

Precision grinding includes several specialized types: external grinding for outer surfaces, internal grinding for bore diameters, surface grinding for flat surfaces, centerless grinding for cylindrical parts, and profile grinding for complex gear tooth geometries. For medical applications, we specialize in external gear grinding and profile grinding, achieving AGMA Class 13 tolerances with custom modifications for optimal medical device performance.

First, precision grinding achieves superior surface finishes (often below 16 microinches Ra) that minimize friction and wear in medical devices. Second, it delivers extremely tight tolerances (up to AGMA Class 13) essential for proper fit and function in surgical instruments. Third, precision grinding can salvage heat-treated components that have distorted, restoring them to specification and preventing costly material waste.

Precision grinding can achieve tolerances as tight as ±0.0001 inches (±2.5 microns) or better. At Carnes-Miller Gear, we achieve AGMA Class 13 ratings on ground medical gears, representing tolerances in the range of 0.0002-0.0005 inches depending on the gear size and specifications. These tolerances are validated through comprehensive gear charts and rigorous quality testing protocols.

We precision grind various medical-grade materials including stainless steels (316L, 17-4 PH), titanium alloys (Ti-6Al-4V), cobalt-chrome alloys, and specialized biocompatible steels. Our grinding process accommodates both hardened and heat-treated materials, with expertise in salvaging components affected by heat treat distortion while maintaining material integrity and biocompatibility.

We employ comprehensive quality protocols including in-house nital-etch testing for grinding burns, detailed gear chart documentation validating all modifications, and rigorous inspection procedures. Our processes are designed to support medical device quality management systems, providing complete traceability and documentation for FDA regulatory compliance and customer quality requirements.

Yes, we specialize in reverse engineering and precision grinding for obsolete medical equipment when OEM support is unavailable. Our team can analyze existing components, replicate original specifications, and manufacture precision ground replacements that meet or exceed original performance standards, extending critical equipment life for healthcare facilities.

Turnaround times vary based on component complexity, quantity, and current production schedule. Our complete in-house capabilities in our 18,000-square-foot facility enable us to maintain precise control over production timelines. We work closely with medical device manufacturers to accommodate project deadlines and can expedite critical orders when needed to support product launches or equipment repairs.
